| O/S | Android OS v5.1 |
| CPU | Quad-Core ARM Cortex A7,1.3GHz |
| GPU | Mali760-MP2 |
| Memory | 2G LPDDR2 RAM+16G EMMC ROM |
| Display | 7'' high-definition Multi-touch screen; Resolution: 1280*720 dpi |
| Physical | Size(L x W x H):188x 99x14 mm Weight: 394g (Include battery ) Case: Black,Red |
| Scan window | Corning Gorilla Glass |
| Port | Micro USB2.0, support OTG |
| Memory interface | TF card slot (Micro SD card),support 2G and 32G |
| Communication | GSM/WCDMA/FDD/TDS/TDD； GSM four-band,TDS B34/39,WCDMA B1/2/5/8,TDD B38/39/40,FDD B1/3/7/8/20 |
| Bluetooth | Bluetooth 4.0+ EDR |
| Camera | 8.0 Mega Pixel rear camera;2.0 Mega Pixel front camera;Auto focus with LED light |
| GPS | Built-in GPS, support A-GPS,GPS+BDS,meter level positioning accuracy |
| WIFI | 2.4G & 5G dual-band seamless roaming,support 802.11a/b/g/n/ac mode,Support WEPWPAWPA2-PSKWAPI PSK Encryption protocol |
| Power | Li-Polymer 7200mAh
Standby time:one week
Charging time: 5-6 hours |
| IOT FUNCTIONS: |
| NFC | HF:13.56M (ISO14443A/B, 15693 Protocol), reading distance2~ 5cm. |
| UHF | Built-in 900M UHF RFID module,support EPC C1/C2,18000-6B/C protocol and the reading distance is about 1m according to different tags,optional |

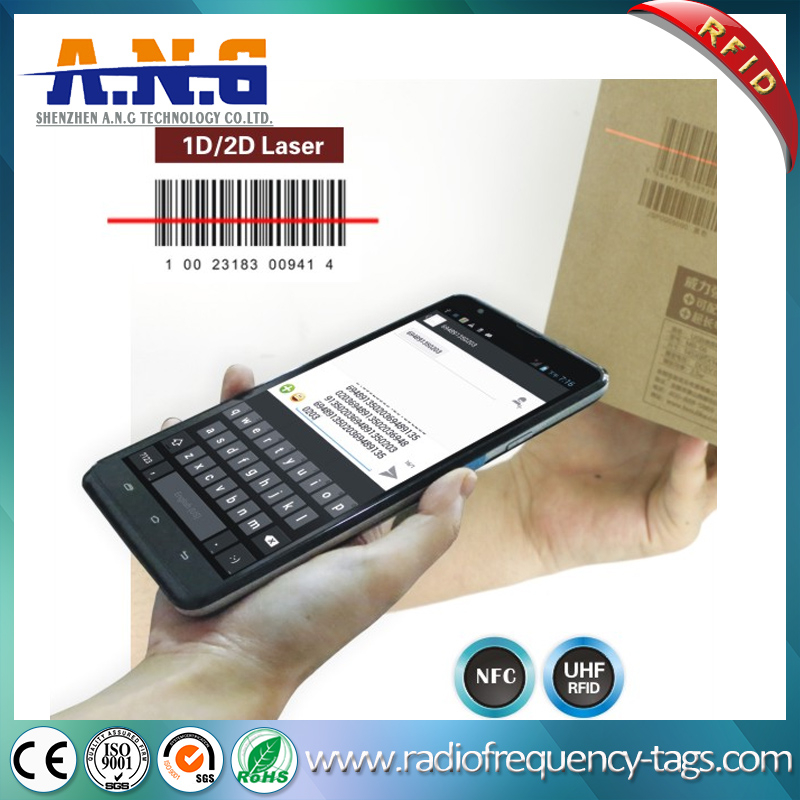

| 1D Barcode Scanner | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128,GS1 Databar,HIBC,etc |
| 2D Barcode Scanner | Built-in Newland barcode scanner module; Chinese sensible code, QR,PDF417 Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codebar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128 ,etc optional |
| Support | Gravity Sensor
Electronic Compass
Light Sensor Distance Sensor |
| Durability | Temperature in operation: -10 to 70ºC
Temperature in storage: -30 to 80 ºC
Humidity in operation: 5% - 90% (non-condensing)
Humidity in storage: 5% - 95% (non-condensing) |
